Understanding the Differences Between USB 3.0, 3.1, and 3.2

USBs have been a real game changer for the world of technology, and they’ve been constantly evolving since the introduction of USB 1.0 in 1996.

Talking about the changes, each generation of USB 3 brought noticeable improvements, which were generally well received by users. The naming convention on the other hand, was a disaster.

USB 3.0 Vs 3.1 Vs 3.2 – What’s The Difference?

Both the official and marketing names were revised multiple times. For instance, USB 3.0 was renamed as USB 3.1 Gen 1, and renamed again as USB 3.2 Gen 1×1. While the latter is the currently used name, some people still prefer the older names, which adds to the confusion.

If you’re (understandably) confused as well, the table below should be helpful.

Original NamesRevised NamesCurrent NamesOld Marketing NameCurrent Marketing Name
USB 3.0USB 3.1 Gen 1USB 3.2 Gen 1×1SuperSpeedSuperSpeed USB 5 Gbit/s
USB 3.1USB 3.1 Gen 2USB 3.2 Gen 2×1SuperSpeed +SuperSpeed USB 10 Gbit/s
USB 3.2USB 3.2 Gen 2×2SuperSpeed USB 20 Gbit/s
The naming of various iterations of USB 3.X

For ease of reading, we’ve organized the sections below in chronological order with the current generation-based naming convention, i.e., USB 3.2 Gen 1×1, 2×1, and 2×2.

USB 3.2 Gen 1×1 (USB 3.0)

USB-Appearance-1

USB 3.2 Gen 1×1, originally introduced as USB 3.0 in November 2008, had several significant improvements over USB 2.0, its predecessor.

The revised USB 2.0 standard supported all types of connectors from Type-A to Mini-AB. USB 3.0 dropped support for the mini connectors and instead supported new versions of Type-A, Type-B, Type-C, Micro-A, Micro-B, and Micro-AB connectors.

The USB 3.0 Type-A connectors were backward compatible with the USB 2.0 version. However, this is not the case for the rest of the connectors, as the other versions don’t physically match. You’ll need an adapter to use these USB 3.0 connectors with a USB 2.0 port.

With these connectors, USB 3.0 specified 150 mA or 0.6 W current for one unit load devices, and up to 900mA or 4.5 W for max six load devices at 5 V. Additionally, USB 3.0 ports could bump the available current up to 1.5 A or 7.5 W if implementing the USB Battery Charging Specification.

And most importantly, USB 3.0, which was marketed as SuperSpeed, introduced max transfer speeds of up to 5 Gbit/s, a massive 10x increase from USB 2.0’s Hi-Speed USB.

USB 3.2 Gen 2×1 (USB 3.1)

usb-connector-types

USB-IF introduced the USB 3.1 standard in 2013, and this is where the rebranding mess began. USB 3.0 was renamed to USB 3.1 Gen 1, while USB 3.1 was marketed as USB 3.1 Gen 2, or SuperSpeed +.

USB 3.1 Gen 1 superseded USB 3.0, meaning it had the same specs, with 5 Gbit/s max bandwidth over a single lane using 8b/10b encoding.

USB 3.1 Gen 2 improved on these specs with a new max data transfer rate up to 10 Gbit/s with 128b/132b encoding. Of course, this was only a theoretical max. But the real-world max speeds were still very impressive at over 7Gbit/s.

While the connector types didn’t change from USB 3.0 to 3.1, one significant difference was the use of USB Power Delivery (PD) standard. The revised USB PD Rev 2.0 standard was released as part of the USB 3.1 suite, which updated USB PD to support various USB-C features such as Alternate Mode.

In terms of power, USB PD introduced Power Rules which defined normative voltage levels at 5 V9 V15 V, and 20 V. Fixed power profiles were also dropped, meaning power supplies could support maximum source output power ranging anywhere from 0.5 W to 100 W.

USB 3.2 Gen 2×2 (USB 3.2)

does-macbook-air-have-usb-1

USB-IF released USB 3.2 in August 2017, and this is where the naming convention really became an issue. USB 3.0, which was rebranded as USB 3.1 Gen 1, was absorbed by USB 3.2 and once again rebranded as USB 3.2 Gen 1×1.

This can get confusing, but as one of our readers put it, thinking of anything referring to Gen 1 as 3.0 could be an easy way to remember.

Similarly, USB 3.1 was renamed as USB 3.2 Gen 2×1, while USB 3.2 was branded as USB 3.2 Gen 2×2. The old marketing names, SuperSpeed and SuperSpeed + were also changed to SuperSpeed 5 Gbit/s and SuperSpeed 10 Gbit/s. Following this trend, the marketing name for USB 3.2 was SuperSpeed 20 Gbit/s.

As evident from the brand name, USB 3.2 operates with dual-lane differential SuperSpeed pairs and uses 128b/132b encoding to offer max speeds of up to 20 Gbit/s

Another very noticeable change with USB 3.2 was that it deprecated all connector types aside from the USB Type-C connector. USB-C specifies a symmetrical connector with 12 A pins on top and 12 B pins at the bottom. Because of the rotational symmetry, you needn’t worry about the correct orientation as with other connector types.

The exclusive use of USB-C meant that the implementation of features such as Alternate Mode was also much more prevalent with USB 3.2. For instance, with the DisplayPort alt mode, you could transfer both USB and Video data simultaneously.

USB 3.0 Vs 3.1 Vs 3.2 – Main Differences

To recap, here are the main differences as detailed in the sections above:

USB 3.0USB 3.1USB 3.2
Form FactorUSB 3.0 specified the use of Type-A, Type-B, Type-C, Micro-A, Micro-B, and Micro-AB connectors.The connector types remained consistent in USB 3.1USB 3.2 specified the exclusive use of Type-C, and dropped support for all other connector types.
Power DeliveryThe standard USB 3.0 specification supports up to 4.5 W of power.With USB PD, USB 3.1 can support up to 100 W of power.USB 3.2 also supports up to 100 W of power with USB PD.
Max BandwidthUSB 3.0 supported a theoretical max bandwidth of 5 Gbit/s.USB 3.1 supported a theoretical max bandwidth of 10 Gbit/s.USB 3.2 supported a theoretical max bandwidth of 20 Gbit/s.

Aside from these major technical differences, there are a few more things worth talking about, starting with the pricing. Each iteration of USB 3 saw the use of improved technology, which subsequently meant increased product prices on the customer’s end.

The exact price difference between the generations differs according to the product, but you can always count on the newer generation products with better specs to cost higher than the older ones.

Second, is the matter of appearance. USB 3.0 originally used blue colored ports, whereas USB 3.1 adapted teal colored ports instead. Some manufacturer’s also use purple or violet for USB 3.1 ports.

While in previous iterations of USB, red color was adapted on those ports/connectors which was limited to chargingUSB 3.2 Gen 2×2 adapted this color wholly.

Finally, let’s talk about actual implementation. With how immensely popular the USB standard is, implementing a new version worldwide is a herculean task that takes years. USB 2.0 had 8 years to establish itself as a standard.

On the other hand, USB 3.0 only had around 4 years between its introduction and the release of USB 3.1. It’s the same story with USB 3.1 and USB 3.2. In fact, USB 3.2 was the likely the least popular, as by the time it’s implementation actually began in 2019, USB4 was already introduced.

USB4 And The Future

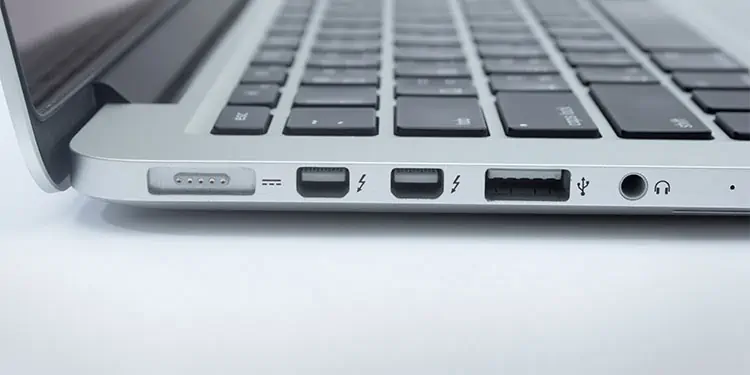

usb-ports-not-working

USB4, which is based on the Thunderbolt 3 protocol, is currently the latest and fastest USB standard. Aside from doubling the data signaling rates compared to it’s predecessor, USB4 brought forth numerous improvements, which deserve an article of their own.

As modern devices are already adopting USB4, the implementation of USB 3.2 has been quite limited. Recently, the EU proposed mandatory USB-C, which further impacts the usage of USB 3.0 and USB 3.1 as well.

While this doesn’t bode well for USB 3, it’s likely a good thing for USB in general, and users as well. Even though USB4 products are slightly more expensive, the numerous improvements make it well worth it. And the prospect of a universal connector type is always welcome as well.
